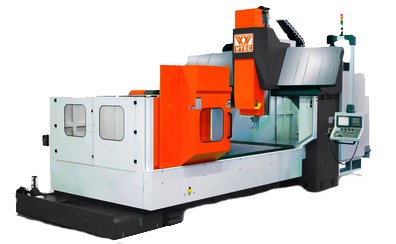

New double column machining center VF4000 arrive at BPK’s stock.
This precise double column machining center is made of one-piece casting bed which ensures high travel accuracy even at high loadings. Transfer of torque from motor to tool is made by automatic 2 step gear box.
Low gear is used while rough cutting and higher gear is used for finish cutting. Spindle bearings have separate coolant system. For smooth travel of spindle stock weight compensation system is done by 2 hydraulic cylinders with hydraulic accumulators.
| Item |
Unit |
VF4000 |
| TABLE | ||
| Table size | mm | 4200х2050 |
| T-slot sizes | mm | 28х11х180 |
|
Max.table loading |
kg | 13 000 |
| Distance between columns | mm | 2400 |
| TRAVEL | ||
|
X axis travel |
mm | 4200 |
| Y axis travel | mm | 2300 |
| Z axis travel | mm |
920 (1020 option) |
| Distance from spindle taper to table (Z=920mm column height-standard) | mm | 150-1070 |
| Distance from spindle taper to table (Option: Z=1020 +100mm higher column) | mm | 150-1170 |
| SPINDLE | ||
| Main spindle power | kw |
18,5/22 (22/26 option) |
|
Spindle speed range: 2-step gear box Belt transmission |
rpm |
4500 (6000 option) 8000 10000 |
| Spindle taper | ISO50 7:24 | |
| FEED | ||
| Work feed | mm/min | 1-7000 |
| Rapid feed | mm/min |
12 000 |
| ATC | ||
| Tool number | pcs. |
40 (60 option) |
| Max.tool weight | kg |
18 |
| Tool size with full nest (ØхL) | mm | 125х450 |
| Tool size with loading through nest (Ø х L) | mm | 215х450 |
| Spindle taper | ВТ50/CAT50 | |
| ACCURACY | ||
| Positioning accuracy X,Y,Z | mm |
±0,005/300 ±0,015 full length |
| Repeatability X,Y,Z | mm | ±0,0025 |
| POWER SUPPLY | ||
| Power supply | Kw | 60 |
| Machine’s dimension | ||
| Length | mm | 12 000 |
| Width | mm | 6 100 |
| Height | mm | 4 700 |
| Weight | mm | 38 400 |
